MOC63u

MOC63u

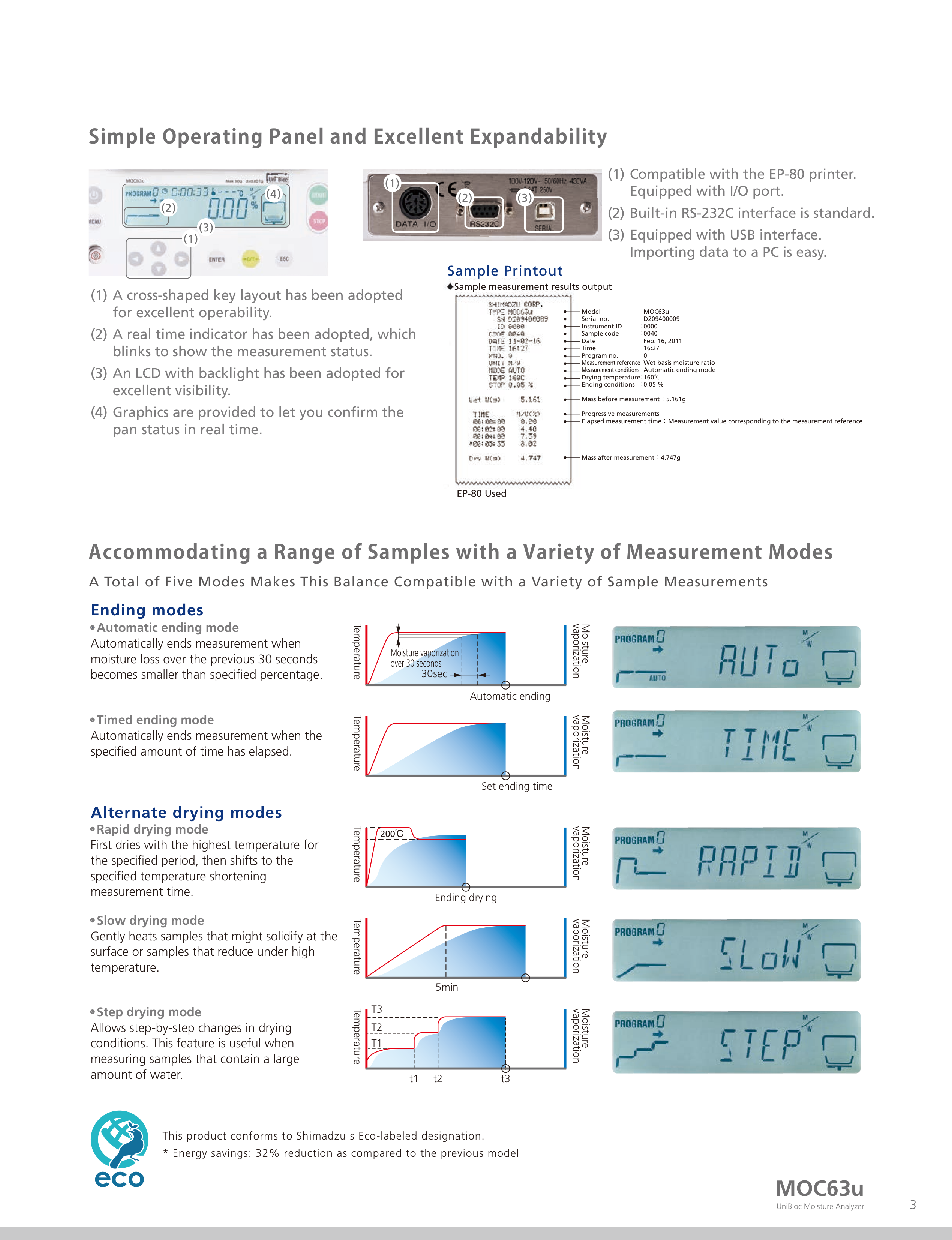

A Total of Five Modes Makes This Balance Compatible with a Variety of Sample Measurements

Main Features

Accommodating a Range of Samples with a Variety of Measurement Modes
(1) Compatible with the EP-80 printer.
Equipped with I/O port.
(2) Built-in RS-232C interface is standard.
(3) Equipped with USB interface.
Importing data to a PC is easy.

Sample Printout
Model
Serial no.
Instrument ID
Sample code
Date
Time
Program no.
Measurement reference
Measurement conditions
Drying temperature
Ending conditions
Mass before measurement : 5.161g
Progressive measurements
Elapsed measurement time : Measurement value corresponding to the measurement reference
Mass after measurement : 4.747g
:MOC63u
:D209400009
:0000
:0040
:Feb. 16, 2011
:16:27
:0
:Wet basis moisture ratio
:Automatic ending mode
:160°C
:0.05 %

EP-80 Used

Trust the MOC63u for Both Speedy and Accurate Measurements Simple Operating Panel and Excellent Expandability

Simple Operation
Select the automatic starting mode, place the sample, and close the heater cover
to start the measurements. The preparation for measurement is so simple that
you do not even have to press the start key.
The Sample Pan Size Is a Spacious 95 mm Dia.
Generally, the wider, thinner, and more uniformly the sample is spread, the more
precise the measurement. Uniform heating is provided by adopting a cleverly
shaped reector (patent pending).
A Wealth of PC Connection Functions
A USB connector is built in as standard for connecting to a PC.
It can also be used in conjunction with the WindowsDirect function (patented).
Note) For Windows Vista, Windows 7, and USB port connections, check the Shimadzu website,
or contact your Shimadzu representative.

(2)
(3)
(1)

(1)

(2) (3) (4)

Moisture ratio measurements are indispensable for quality control and as checks of raw materials in a variety of industries
including food products, chemistry, and pharmaceuticals.
The MOC63u electronic moisture analyzer is capable of accurate, quick and easy moisture ratio measurements.
Just place the sample in the sample pan and close the cover to start the measurement.
This instrument can accommodate virtually any sample, and will contribute to enhanced user productivity.
