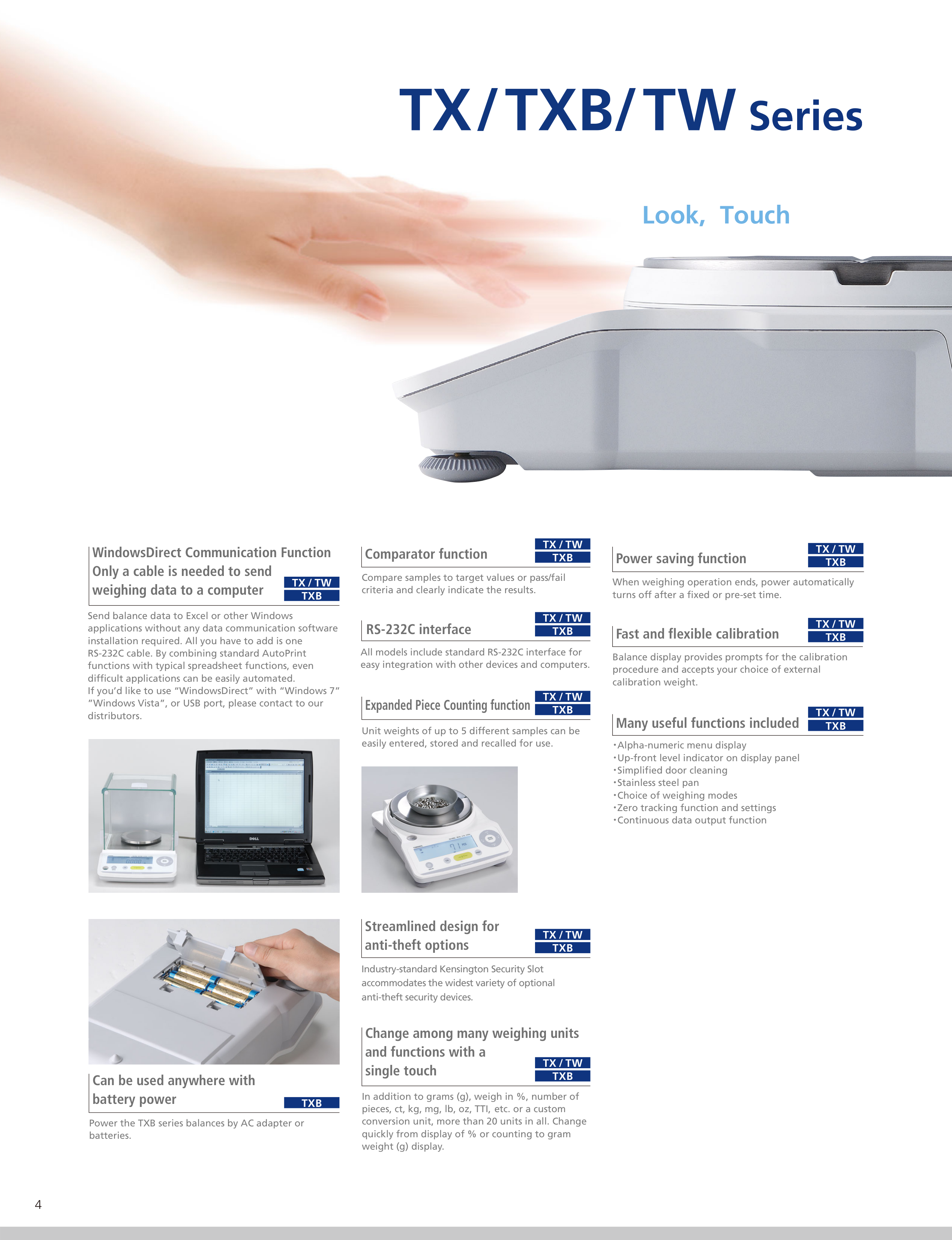

TX/TXB/TW Series

WindowsDirect Communication Function
Only a cable is needed to send
weighing data to a computer
Send balance data to Excel or other Windows
applications without any data communication software
installation required. All you have to add is one
RS-232C cable. By combining standard AutoPrint
functions with typical spreadsheet functions, even
difficult applications can be easily automated.
If you’d like to use “WindowsDirect” with “Windows 7”
”Windows Vista”, or USB port, please contact to our
distributors.

Comparator function
Compare samples to target values or pass/fail
criteria and clearly indicate the results.

RS-232C interface
All models include standard RS-232C interface for
easy integration with other devices and computers.

Expanded Piece Counting function
Unit weights of up to 5 different samples can be
easily entered, stored and recalled for use.

Power saving function
When weighing operation ends, power automatically
turns off after a fixed or pre-set time.

Fast and flexible calibration
Balance display provides prompts for the calibration
procedure and accepts your choice of external
calibration weight.

Many useful functions included
・Alpha-numeric menu display
・Up-front level indicator on display panel
・Simplified door cleaning
・Stainless steel pan
・Choice of weighing modes
・Zero tracking function and settings
・Continuous data output function

Streamlined design for
anti-theft options
Industry-standard Kensington Security Slot
accommodates the widest variety of optional
anti-theft security devices.

Change among many weighing units
and functions with a
single touch
In addition to grams (g), weigh in %, number of
pieces, ct, kg, mg, lb, oz, TTI, etc. or a custom
conversion unit, more than 20 units in all. Change
quickly from display of % or counting to gram
weight (g) display.

Can be used anywhere with
battery power
Power the TXB series balances by AC adapter or
batteries.

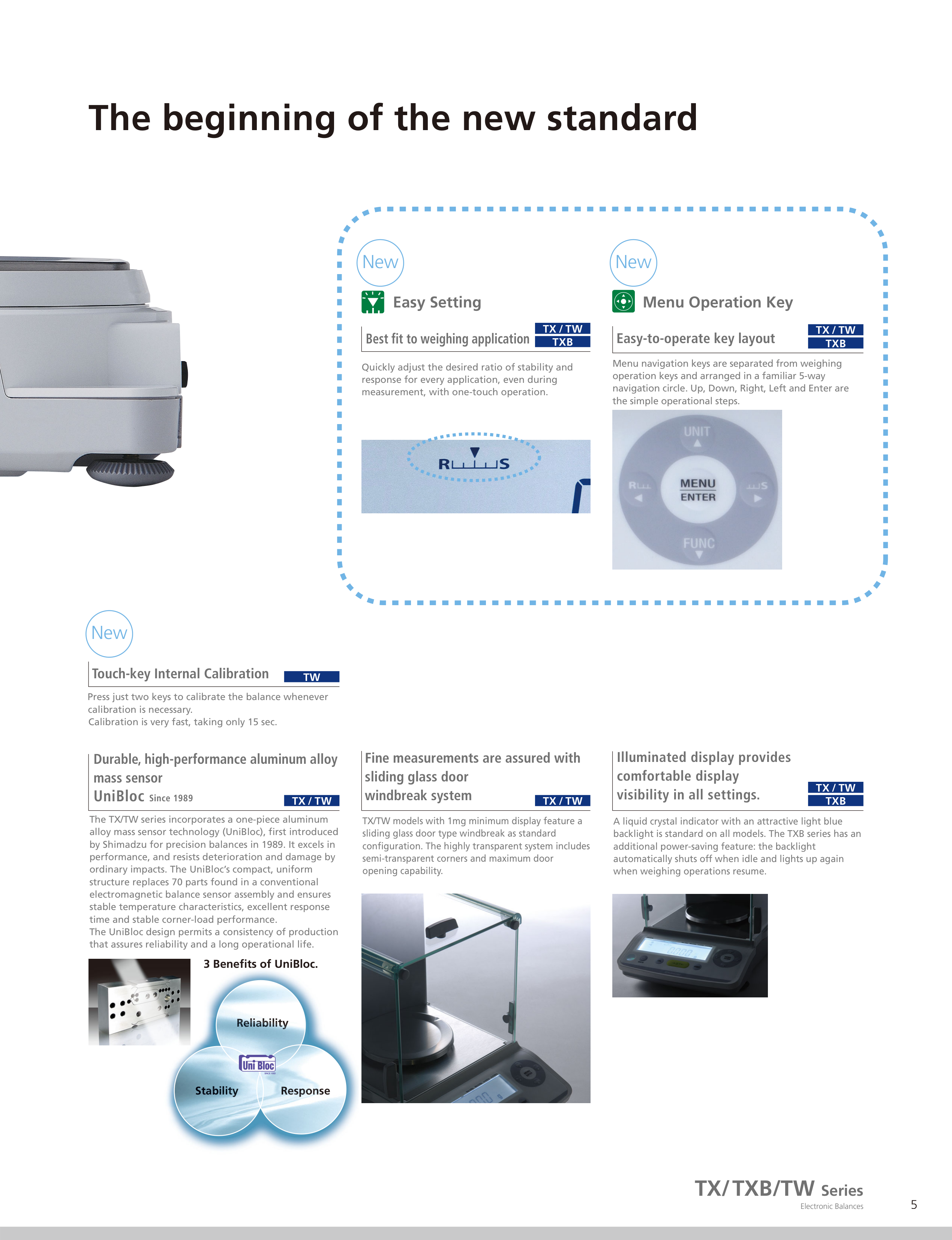

Touch-key Internal Calibration
Press just two keys to calibrate the balance whenever
calibration is necessary.
Calibration is very fast, taking only 15 sec.

Durable, high-performance aluminum alloy
mass sensor
UniBloc Since 1989
The TX/TW series incorporates a one-piece aluminum
alloy mass sensor technology (UniBloc), first introduced
by Shimadzu for precision balances in 1989. It excels in
performance, and resists deterioration and damage by
ordinary impacts. The UniBloc’s compact, uniform
structure replaces 70 parts found in a conventional
electromagnetic balance sensor assembly and ensures
stable temperature characteristics, excellent response
time and stable corner-load performance.
The UniBloc design permits a consistency of production
that assures reliability and a long operational life.

Fine measurements are assured with
sliding glass door
windbreak system
TX/TW models with 1mg minimum display feature a
sliding glass door type windbreak as standard
configuration. The highly transparent system includes
semi-transparent corners and maximum door
opening capability.

Illuminated display provides
comfortable display
visibility in all settings.
A liquid crystal indicator with an attractive light blue
backlight is standard on all models. The TXB series has an
additional power-saving feature: the backlight
automatically shuts off when idle and lights up again
when weighing operations resume.
